Geotab HRN-GR09K1

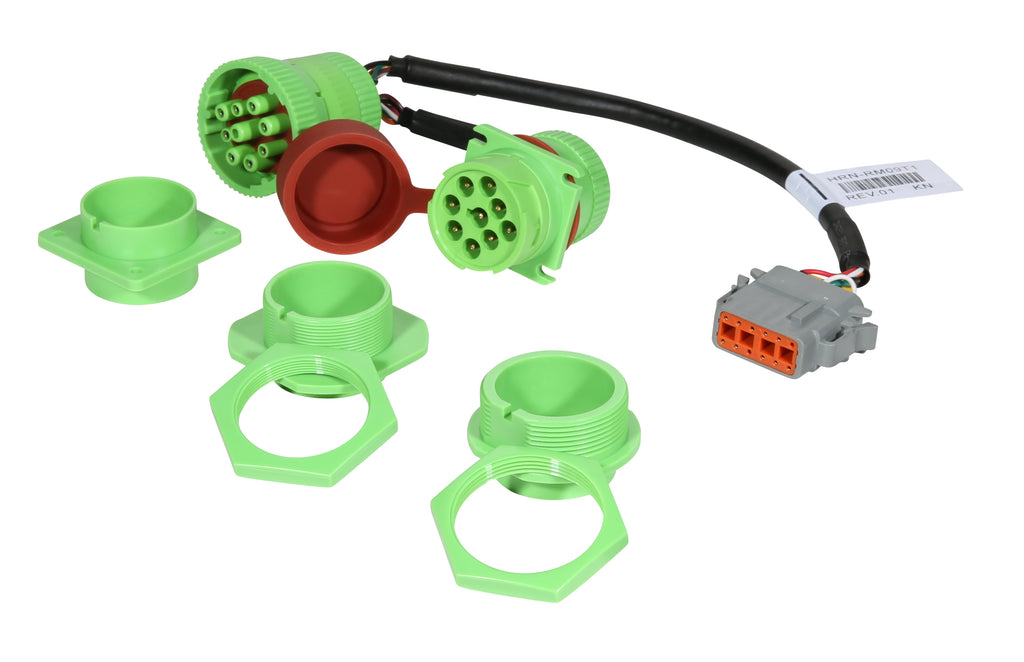

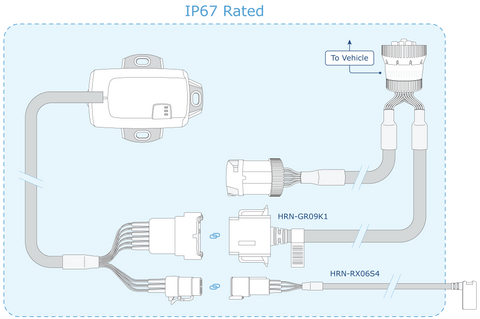

The HRN-GR09K1 is a ruggedized Deutsch T-harness kit with four mounting brackets for connecting a Geotab® GO RUGGED device to most heavy-duty vehicles internationally. The HRN-GR09K1 contains four mounting adapters, which are engraved with numbers for easy reference. This harness is built to IP67 standards for protection against dust and water.
Harness Technical Specifications
|
Weight |
140 g |
|
Size |
Max Length: 685 mm Max Width: 47.8 mm |
|
Material |
Universal 9-pin connectors: Polycarbonate, Nylon, Silicone (rubber) Adapters: Polycarbonate Universal 16-pin connector: PBT Wire Jacket: Mesh Sheathing |
|
Connectors |
2 × Universal Deutsch Connectors 1 × 24 V compatible ALDL Connector |
|
Power Output |
8 V to 36 V |
|
Current Rating |
5 A |
|
Temperature Rating |
−40 to +85 °C |
|
Adapters |
See page 2 |
